vM CT460
cd transport |
| |
Description

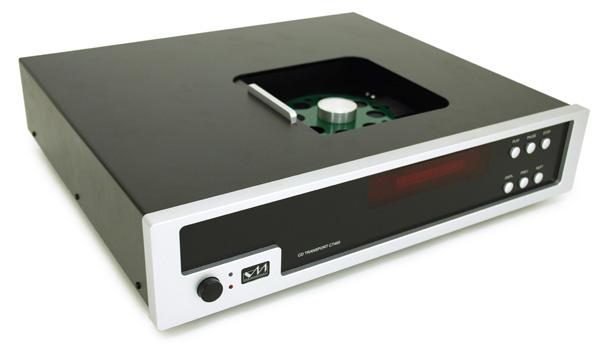

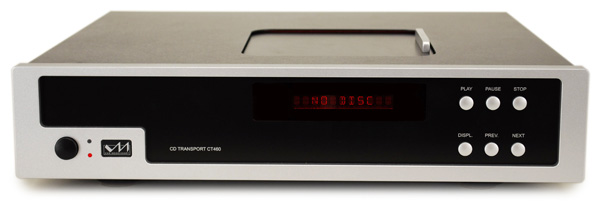

The Van Medevoort CT460 stereo CD transport top loader is designed to
match the vM DA466 and DA468 D/A converters. The same heavy, rigid
housing is used to minimize resonances and mechanical distortion. The CD
transport mechanism is mounted on a multiple sub chassis with vibration
absorption and using an elastic suspension to isolate against acoustic
feedback. Only audiophile quality components are used in the power
supplies and the digital circuits. A vM Super Clock is placed for
perfect timing, but also minimum jitter and phase distortion. Extra
control options are available, such as repeat or random play, by using
the remote control. Next to the gold plated digital coaxial RCA and XLR
outputs, there is also an optical output available and of course the
best (I2S) connection to our converters: vM Q-Link. |
| |
Features
• stereo CD transport
• top loader system with exclusive designed stabilizer
• special vM Super Clock with low phase distortion and jitter
• digital outputs – Q-Link, XLR, coaxial and optical
• multiple stage vM power supplies
• audiophile digital circuitry for optimal soundstage
• highly musical performance
• remote controlled by RC5
• silver / black finished front plate |
 |
|
| |
Specifications |
|
| CD mechanism |
CD-Pro2LF metal frame |
| conform |
Red Book protocol |
| signal format |
16 bit PCM - 44.1 kHz |
| disc format |
CD, CD-R, CD-RW |
| disc support |
80 / 120mm (IEC908) |
| Q-Link Clock input |
16.9344 MHz |
| outputs /
connectors |
4 / RCA, XLR
+ Optical |
| output SPDif and Q-Link |
0.5 Vp-p (EBU-XLR 4Vp-p) |
| power supply |
115-230 Volt
/ 50-60 Hz |
| power consumption |
20 / 30 Watt – stb / on |
| weight |
11.5 kg |
| size w x h (h+feet) x d |
434 x 94 (108) x 390 mm |
| |
|
| Options |
● vvM Silver Cable
● vM Power
Line Filter |
| Modifications reserve |
|
|
|
|
Van Medevoort Audio Products
|
|
|
|
 |
|
|
